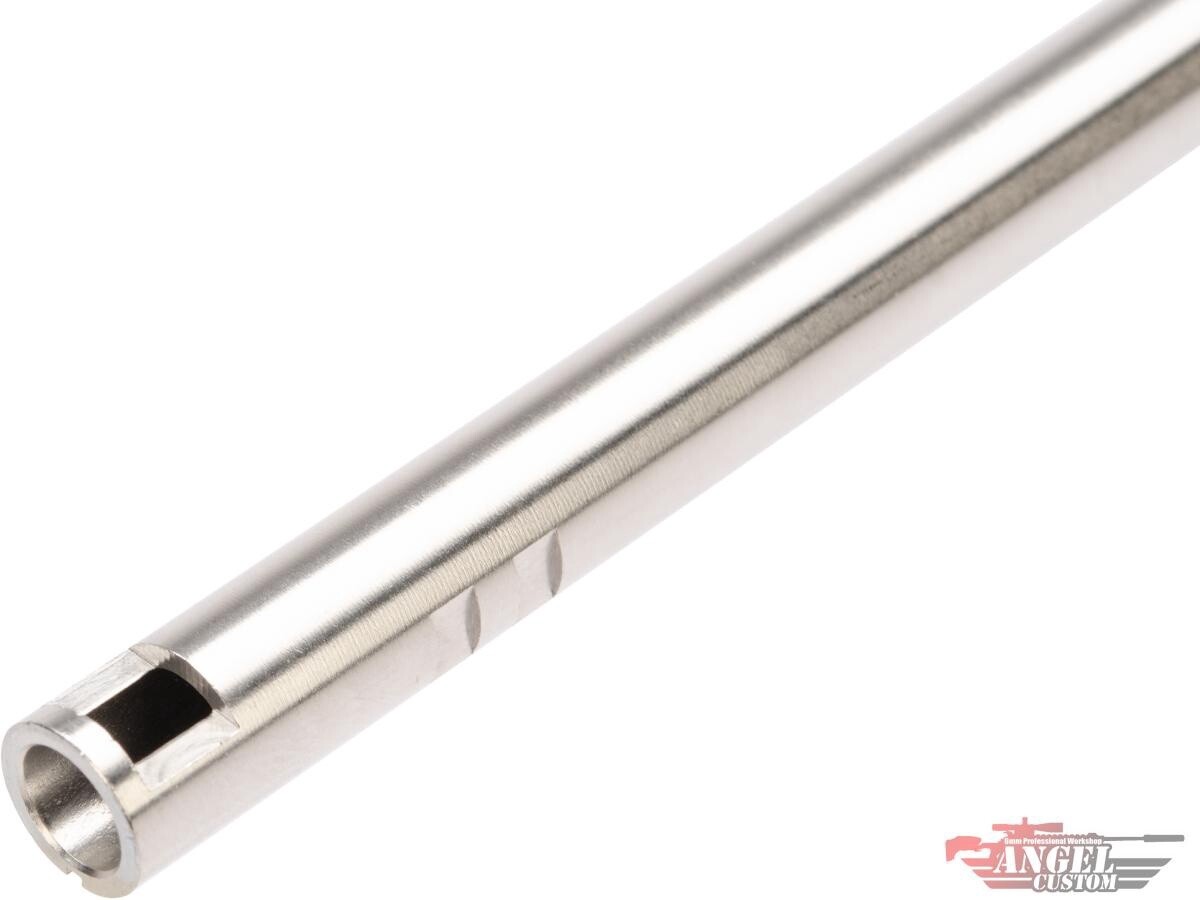

Angel Custom G2 SUS304 Stainless Steel Precision 6.03mm Airsoft AEG Tightbore Inner Barrel

Features

• Improve grouping / accuracy
• Increase power by 20~50 FPS (varies pending barrel length) and range / distance (maximum range / effective range varies pending barrel length)
• Highest strength & durability amongst all existing Airsoft AEG barrels
• Milled channels to secure barrel onto the hopup unit
• Angled window for reducing wear on the hopup bucking
• CNC milled and tapered crown
• Individually crowned edges for improved performance
• Crafted from high quality 100% SUS304 stainless steel

Angel Custom G2 6.03mm Inner Barrel Series are the pinnacle of quality and performance in the Airsoft Industry. Utilizing advanced machining technology with premium grade materials, these inner barrels stand out in both quality and performance.
After considerable testing and R&D, SUS304 stainless steel was chosen for its qualities that it gives to the application of barrel manufacturing. Despite its higher cost and manufacturing complexity, SUS304 stainless steel provides a degree of hardness, durability, and resilience to ensure the barrel retains its consistency and accuracy even after tens of thousands of rounds. Other qualities of SUS304 stainless steel is that it has natural scuff, corrosion, and weather resistant qualities making it easier to maintain for years of reliability. Each barrel is crafted using precision machinery; a high polish and precision crowning provide peak performance.

Compatibility / To Determining the inner barrel length you need:
This barrel is compatible with all Tokyo Marui system AEGs The key to choosing an optimized inner barrel is to prevent it from exposing out of your outer barrel (or flashhider and mock silencer extensions) while maximizing it's length for optimized performance. Please note that the stock barrel length in your gun may not always be optimized for mass production models.
To determine the length you need, measure from where the magazine feed the bb to the tip of your inner barrel, or where you want your inner barrel to end. Subtract ~5mm for hopup unit. Remember, it is perfectly okay to have an inner barrel shorter than your outer barrel, or have the exposed sections hidden in a longer flashhider or mock silencer.

Manufacturer: Angel Custom

Specifications:

Material: High Quality 100% Pure SUS304 Stainless Steel
Overall Length: 445mm
Inner Diameter: 6.03mm
Compatibility: Recommended for Seekins Precision Licensed AR-15 SBR8/ SP223. All Marui Compatible AEG's and other rifles utilizing standard AEG specification inner barrels

Why Angel Custom?

• SUS304 stainless steel barrels are simply better than alloy, aluminum, and brass barrels
• Angel Custom Tight bore barrels are the most affordable steel 6.03mm tight bore barrels
• Angel Custom's manufacturing capability provides industry leading accuracy and precision

Why 6.03mm?
With the 5.99mm and 5.98mm bbs going extinct, and with present day match grade bbs being 5.88~5.95 for a better center of mass, 6.03mm became the new optimized bore for maximum range, grouping and accuracy.(BB Diameter Deviation Reference: Tokyo Marui / Excel (5.90+). KSC/Evike Japanese Spec. (5.88+). Matrix, WE, AIM Top, Madbull, Elite Force (5.90+).
6.03mm barrels also provides less air volume in the barrel, resulting less air needed from the cylinder for each projection.

Inner Barrel FAQ: If you greatly increase the inner barrel of your AEG, you may want to make sure your gearbox Cylinder is adequate. (For example, if you install a 509mm inner barrel on your MP5, you may want to switch the cylinder to a full cylinder so the amount of air inside the cylinder is equivalent to your new barrel.

About Angel Custom

Angel Custom was founded on a mission to promote satisfaction and excitement on the Airsoft battlefield. Founded by Airsofters searching for perfections, it is our joy and pride to present you our battle tested creations. We strive to provide quality products and services that are reliable and trustworthy to be worthy of the trust placed in us.
